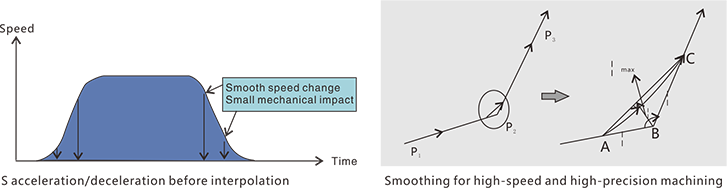

| Programming function |
| 1 | Program format | ISO command standard, program name: 0 + 4 digits,Block number: N + 5 digits; |
| G+ 3 digits; coordinate value IpY6 digits before decimal and 4 digits behind decimal, S +5 digits, M + 3 digits, F + 6 digits before decimal and four digits behind decimal |
| 2 | Interpolation function | Positioning, linear interpolation, circular interpolation, helical interpolation, cylindrical interpolation, polar coordinate, spline curve interpolation. |
| 3 | Workpiece coordinate system | Basic coordinate systems: G52YG59; additional extensive coordinate systems JG54.1J: 48 groups |
| 4 | Tool compensation | C tool compensation function, 400 groups of tool compensation |

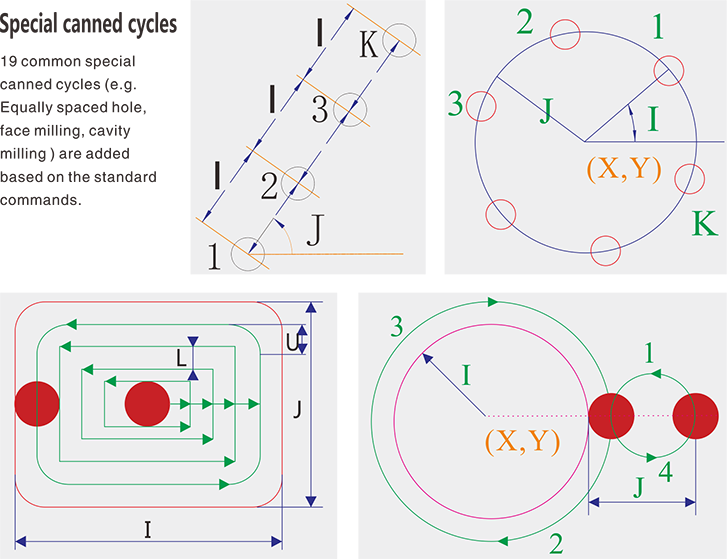

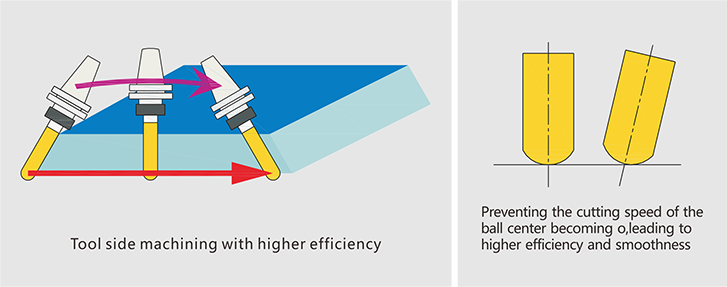

| 5 | Programming function | More than 100 G commands in total, including 12 types of common canned cycle, 19 type of special canned cycle and compound cycle, face milling, coordinate system rotation, scaling, mirror image, automatic measurement of tool length, tool center point control, inclined plane machining command, four nesting levels of subprogram call, B type user macro program. |
| 6 | Program storage | Program storage capacity: 240M, which can be extended to 500M. Number of programs storable:400 |
| 7 | Reference point function | G27 Reference position return check; G28 Reference position return G29 Return from reference position; G30 2nd, 3rd, 4th reference point return |
| 8 | Skip function | G31 Skip function, used for measuring tool and workpiece |
| 9 | Programmable control function | Programmable stroke limit (G22, G23), programmable data input (G10) |
| Operation function and display function |
| 1 | Operation mode select | AUTO, MDI，EDIT, MANUAL，MPG，ZERO RETURN, DNC |
| 2 | ON/OFF operation | Single block, block skip, machine lock, auxiliary function lock, optional stop, dry run, restart, emergency stop, overtravel release, cycle start, feed hold, manual continuous feed, step, rapid traverse, MPG, spindle override, feedrate override, rapid traverse override |
| 3 | Setting | Tool length compensation measurement input, workpiece offset measurement input, parameter setting help, servo parameter setting. |
| 4 | Program operation | New, edit, delete, rename, search, copy, paste, read, transmission，background editing, dynamic graph simulation |
| 5 | Help function | Alarm message explanation, operation description, parameter description, macro command description, G command description, PLC address description, counter |

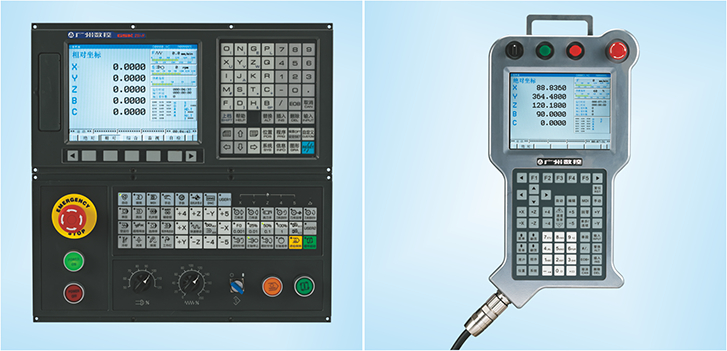

| 6 | Display | 10.4 inch LCD with resolution of 800Y600, or 8.4 inch LCD with resolution of 640Y 480, Chinese/English display, dynamic graph, clock, process time, run time, part count, modal information, actual speed, hardware/software version, ladder diagram, alarm message, diagnosis message, alarm history, operation history. |
| Operation function and display function |
| 1 | M function | M code with 3 bits, multiple M code command, M code for calling macro command or subprogram |
| 2 | T function | T code with three bits, tool life management |
| 3 | S function | Y10V analog voltage output from analog spindle interface, digital spindle, S code with five bits, spindle speed setting, multiple spindle control, spindle orientation, M type and T type gear shift, floating taping, rigid taping, spindle override, spindle speed fluctuation detection |
| Precision compensation function |
| 1 | Backlash compensation | Separately compensates rapid traverse and cutting feedrate |
| 2 | Pitch compensation | Interpolation-type unidirection/bidirection pitch error compensation |
| Communication and data input/output interface function |
| 1 | Data interface function | Ethernet, USB and RS232 interfaces on the front panel, through which data transmission, DNC and network function can be realized. |
| 2 | Data input/output | Input/output programs, NC parameters, compensation values, offset values, macro variable values, PLC programs, PLC parameters input/output through data interface, Ethernet, USB interface or DNC. |
| 3 | Network function | Ethernet communication, network DNC, remote monitor, remote diagnosis, remote maintenance |
| 4 | I/O interface | Terminal block type I/O DI/DOJ64/48 |
| Flat cable type I/O DI/DOJ48/32J2 group 24/16J |
| Flat cable analog I/O DI/DOJ24/16 AI/AOJ2 /2J12 bit DA ± 10V |
| Max. extension points DI/DOJI024 points/1024 points |

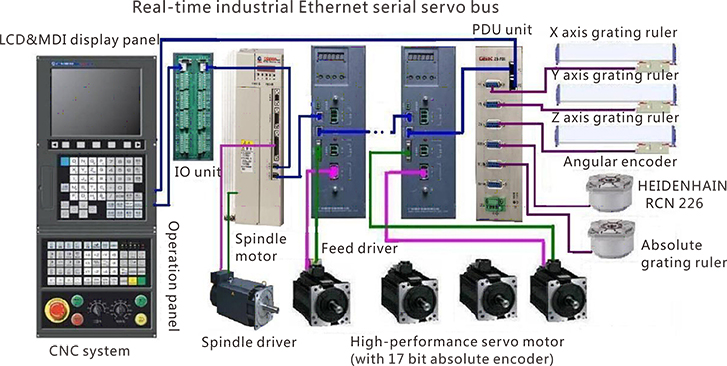

| 5 | Servo drive interface | GSK-Link Ethernet bus interface |
| 6 | Interface of external position de-tection unit
(for fully-closed loop) | Adaptive to HEIDENHAIN absolute grating ruler, angular encoder, Endat2.2 protocol, up to 6 axes. |
| PLC function |
| 1 | PLC specification | Built-in PLC, ladder diagram editing, command list programming compatible format; |
| 10 basic commands, 49 function commands; |
| Two level programs，scan period of first level program: 8ms，basic command execution time: 0.5us/step |
| Max. program steps: 12000. The ladder diagram can be displayed and edited on line, and be uploaded and downloaded. |
| Intermediate relay (R) | 1100 bytes (R0 toR1099) |
| Data register (D) | 1860 bytesJDO toD1859J |
| Counter (C) | 400 bytesJCO to C399J100 PCS |
| Timer (T) | 200 bytesJTO to T199J100 PCS |
| Message display request signal (A) | 32 bytes (A0 to A31) |
| Keep relay (K) | 32 bytes (K0 to K31) |
| Skip Label (L) | 9999JL1YL9999J |
| Subprogram (P) | 512JP1YP512J |
| Safety and maintenance |

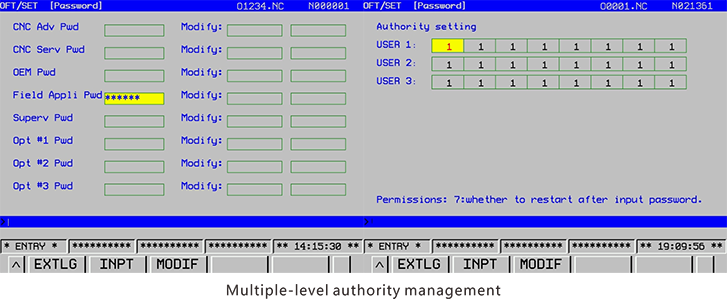

| 1 | Safety function | Emergency stop, hard limit, 1 st soft limit, 1 st soft limit , 2nd soft limit, multi-authority data protection, spindle safety speed, feed safety speed, NC alarm, PLC alarm, servo alarm, following error monitor, servo OFF, interlock. |

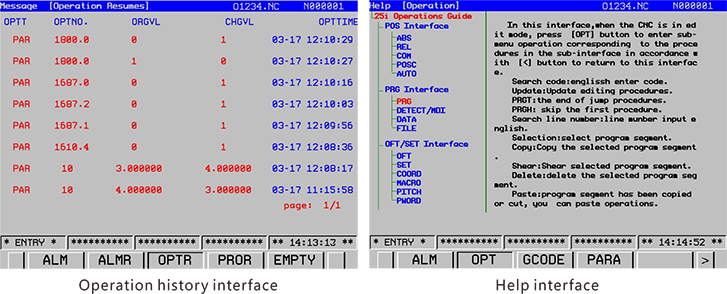

| 2 | Maintenance function | Operation history, alarm history, machining history, CNC running state diagnosis, PLC interface diagnosis, data backup and recover for CNC and PLC data, speed wave form diagnosis, network diagnosis and maintenance, servo setting and servo load, state monitor and diagnosis. |
