Customer Requirements:
*The gross weight of the gear is 2?6kg, and combine with the gear machining process to achieve the automatic loading and unloading of the gear parts on the lathe and the machining center;
*The loading and unloading system has strong flexibility, and can be applicable to workpieces with various specifications;
*In line with the beat of the part machining and with reasonable layout to guarantee the production quality.
Application Effect:
*Adopt the multi-position loop material storage rack and each position’s orientation mechanism can be adjusted, and the clamping finger can be adjusted or replaced to adapt to workpieces with various specifications;

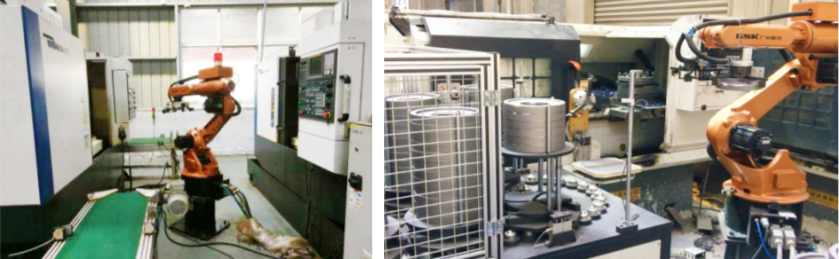

*The automatic production line consists of 1 robot for two lathes, one robot for 2 machining centers for loading and unloading, 2 robots transfer workpieces through conveying belts;
*Making use of production line of GSK control system unit to manage the communication between robots and lathes, robots and storage racks, robots and belts, etc. and also manage the statistics for calculation of production capacity and devices utilization rate,etc.
